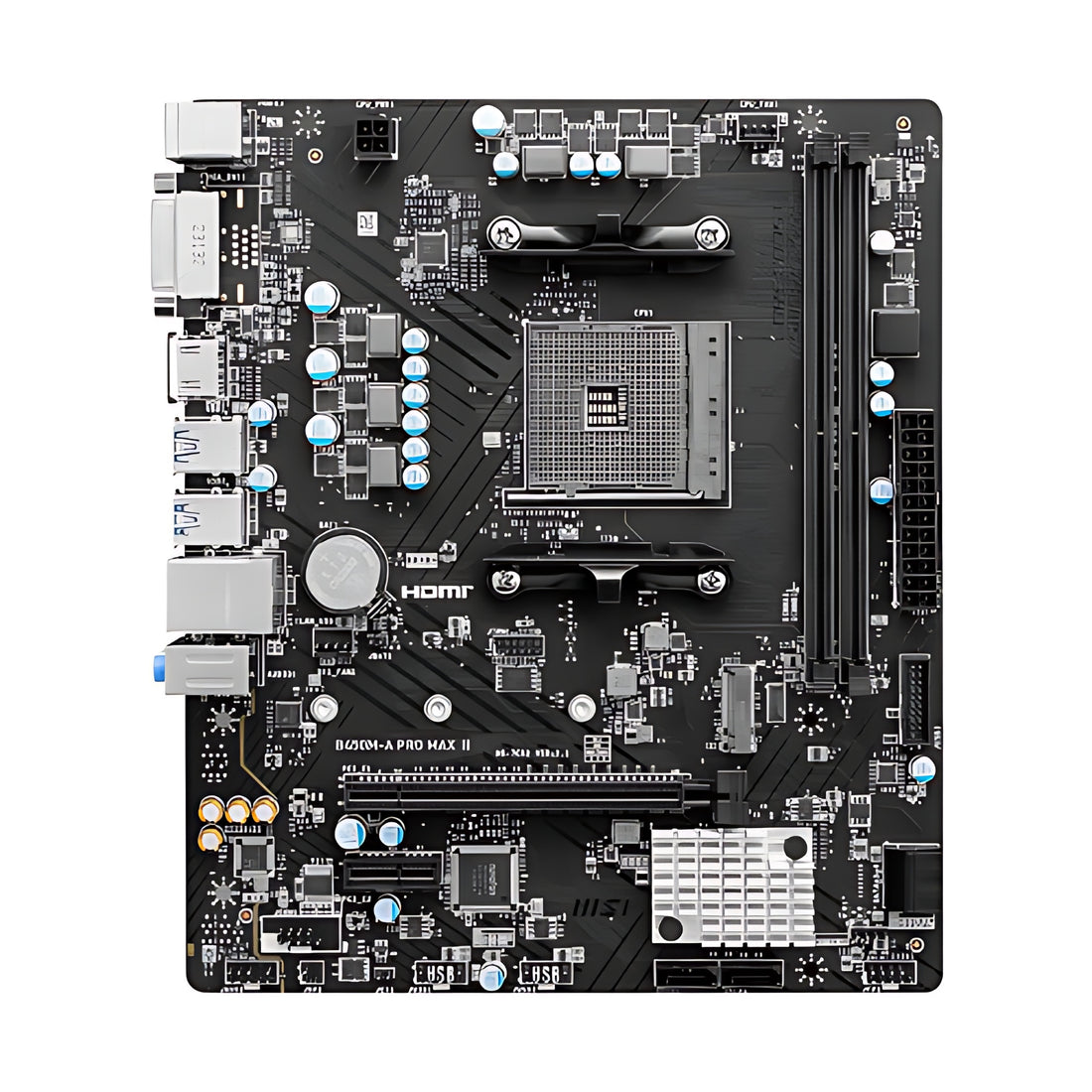

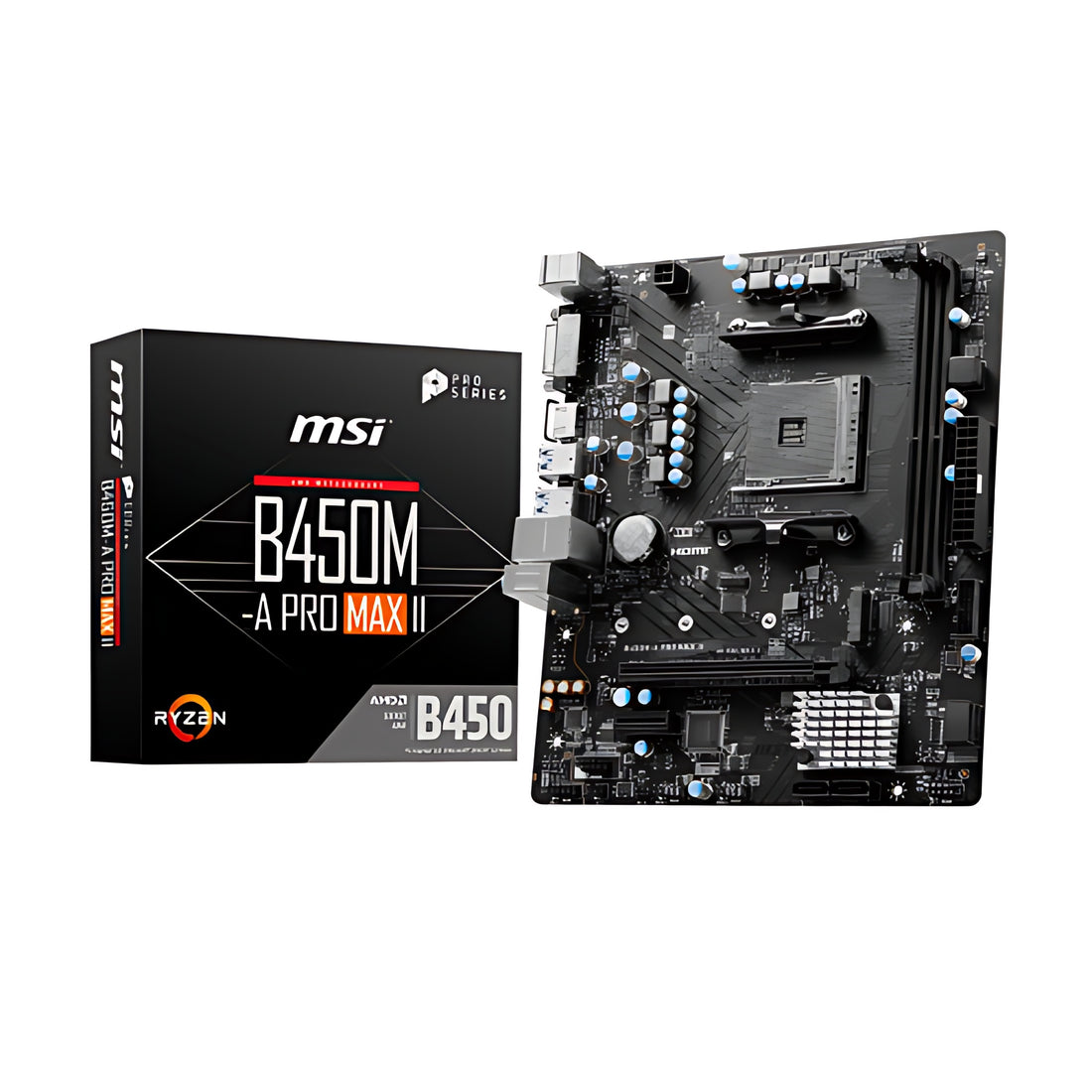

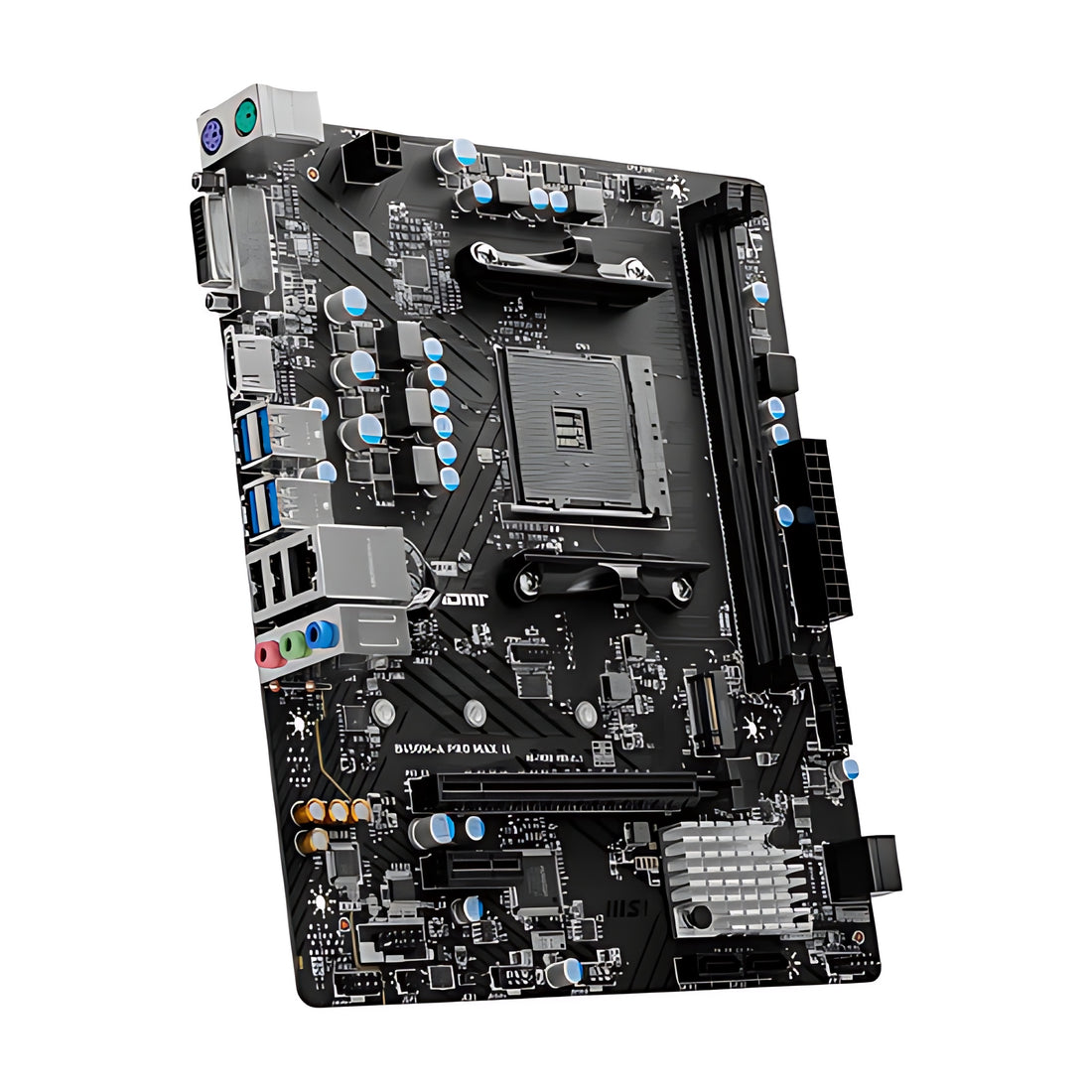

MSI B450M-A PRO MAX II AMD AM4 Motherboard

Build a reliable and performance oriented PC with the MSI B450M-A PRO MAX II Micro-ATX Motherboard, a versatile foundation for AMD Ryzen based systems. Featuring the AMD B450 chipset, this board supports a wide range of AMD Ryzen processors from 1000 to 5000 series, including G-Series APUs and Athlon processors, giving you flexibility for budget to mid range builds. With dual channel DDR4 memory support up to 64 GB and speeds up to 4133 MHz (OC), ultra fast Turbo M.2 slot for NVMe SSDs, ultra fast 2.5 Gb LAN, and enhanced audio with Realtek HD codec, this motherboard blends essential performance with efficient connectivity and expansion options.

Key Features

• AMD B450 Chipset: Solid performance and compatibility for Ryzen builds.

• AM4 Socket: Supports a wide range of AMD Ryzen CPUs (1000-5000 series) and Athlon processors with Radeon graphics.

• Memory Support: 2× DDR4 DIMM slots supporting up to 64 GB RAM, with XMP overclocking up to 4133 MHz (OC).

• Expansion Slots: 1 × PCIe 3.0 ×16 for discrete GPU and 1 × PCIe 2.0 ×1 for additional cards.

• Storage Options: 1 × M.2 slot supporting NVMe (PCIe 3.0 x4) and SATA SSDs plus 4 × SATA 6 Gb/s ports for HDD/SSD.

• Networking: Realtek 8125 2.5 Gb LAN for fast wired connectivity.

• Audio: Realtek ALC897 7.1 channel HD Audio for immersive sound.

• Display Outputs: HDMI and DVI-D (for CPUs/APUs with integrated graphics).

• USB Connectivity: Ample USB 3.2 Gen1 and USB 2.0 ports for peripherals and accessories.

• Form Factor: Micro-ATX, ideal for compact and mid-size PC builds.

• Easy BIOS & Setup: User friendly BIOS and board layout for easy installation and tuning.
