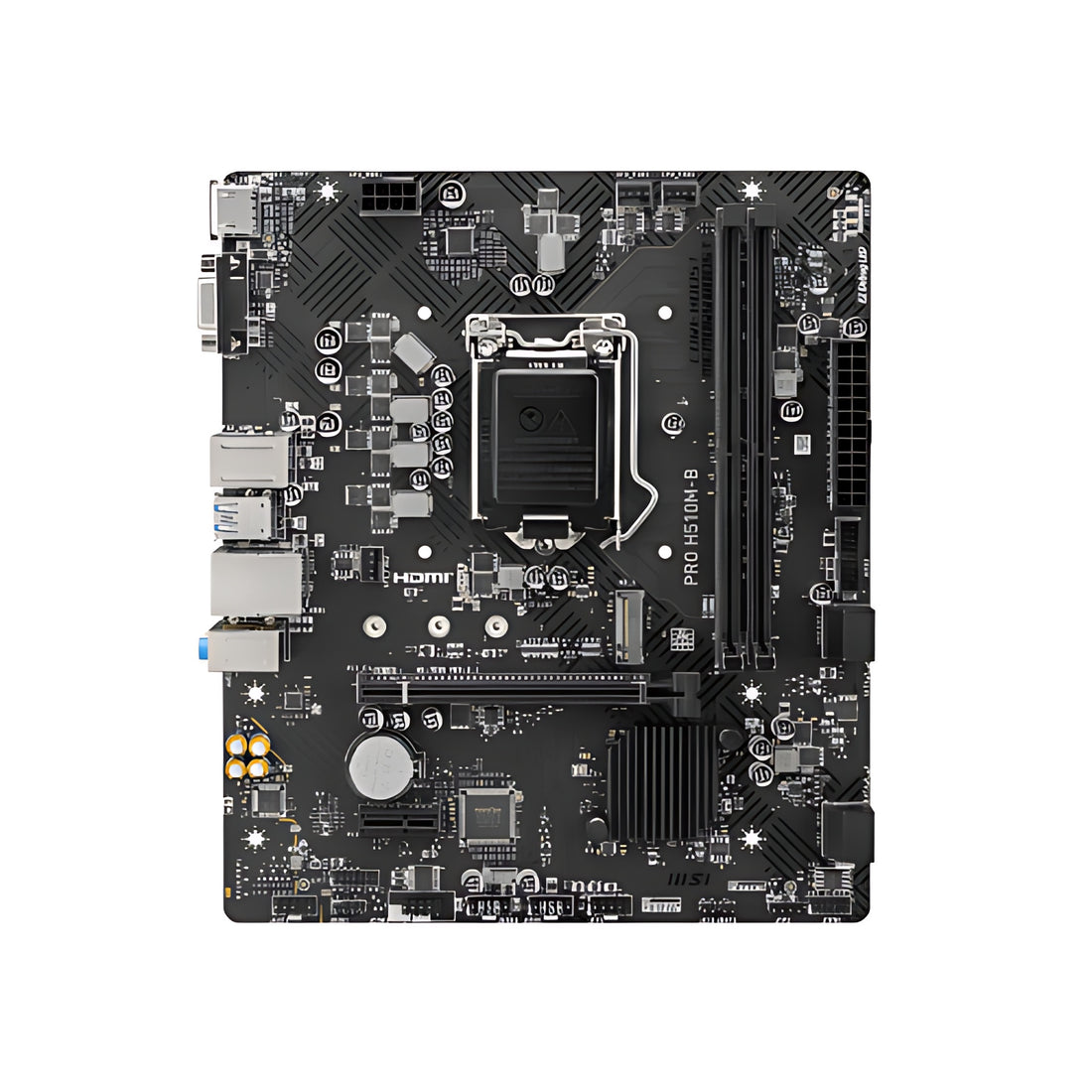

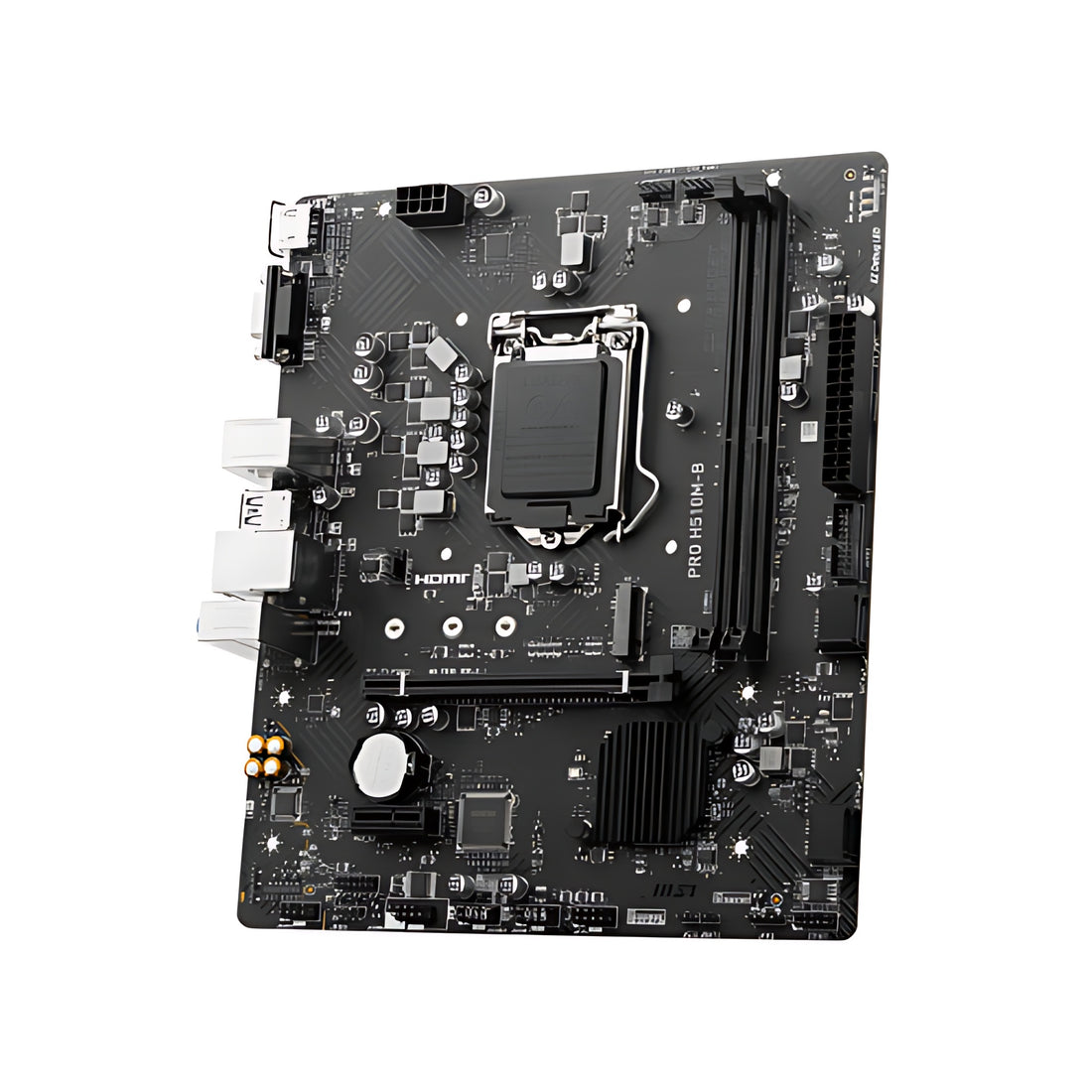

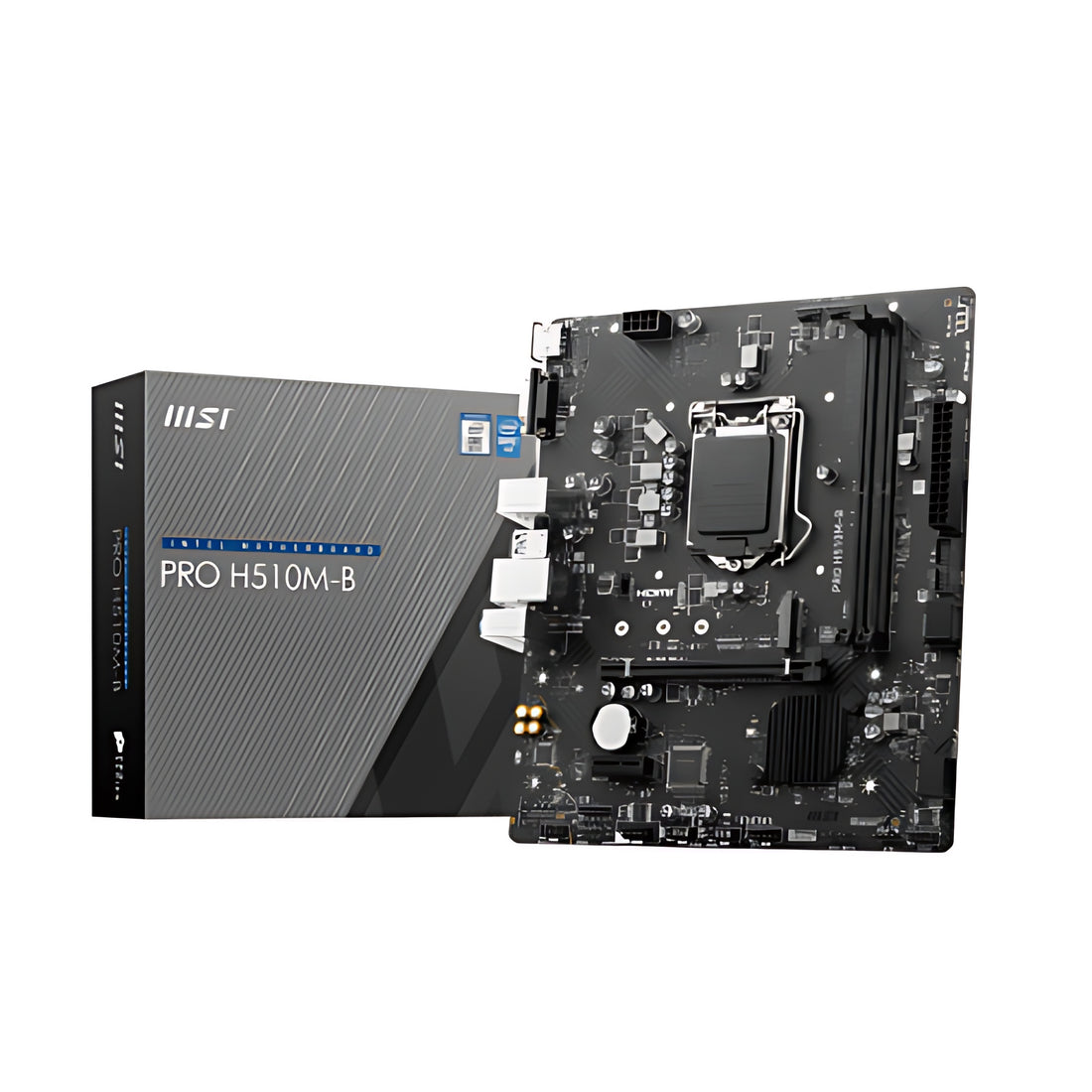

MSI PRO H510M-B Intel Motherboard

Build a reliable and budget friendly PC with the MSI PRO H510M-B Motherboard, a compact mATX board designed for 10th generation Intel® Core™, Pentium® Gold, and Celeron® processors on the LGA1200 socket. Featuring support for dual channel DDR4 memory, modern storage options including an M.2 slot, and essential connectivity like HDMI, VGA, USB 3.2, and Gigabit LAN, this board delivers stable performance for everyday computing, home office systems, and entry level gaming builds. It also includes EZ Debug LEDs for easy troubleshooting and Audio Boost for enhanced audio clarity.

Key Features

• Intel H510 Chipset: Supports 10th Gen Intel® Core™, Pentium® Gold, and Celeron® processors on LGA1200.

• Dual Channel DDR4 Memory: 2 DIMM slots with support up to 64 GB RAM and up to 2933 MHz.

• Expansion Slots:

  • 1 × PCIe 3.0 ×16 for discrete GPUs

  • 1 × PCIe 3.0 ×1 for expansion cards.

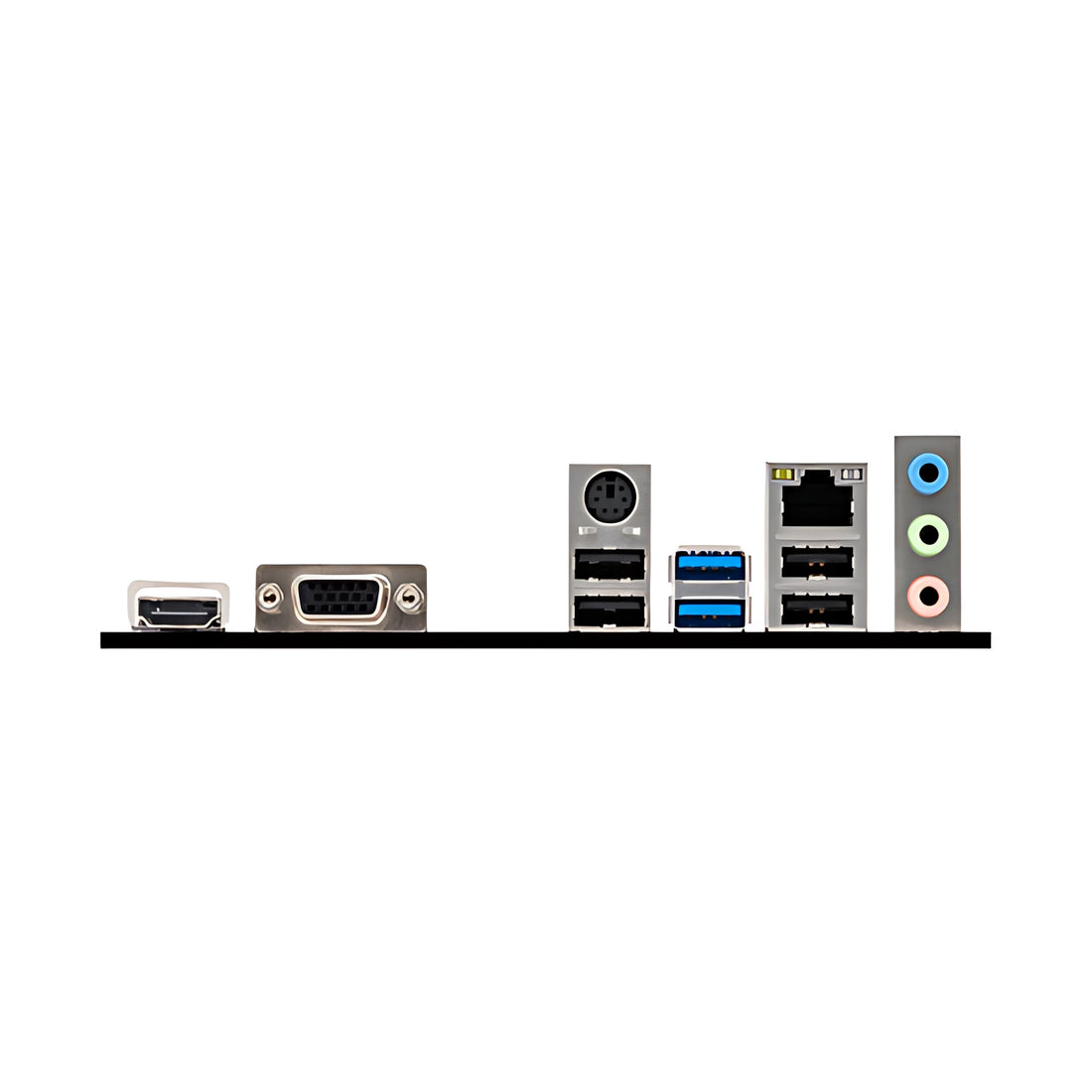

• Graphics Outputs: HDMI 1.4 (4K@30 Hz) and VGA for display (requires CPU with integrated graphics).

• Fast Storage: 1 × M.2 Gen3 ×4 slot supporting NVMe or SATA M.2 SSDs + 4 × SATA 6 Gb/s ports.

• USB Connectivity: Multiple USB 3.2 Gen1 and USB 2.0 ports at rear and via internal headers.

• Networking: Realtek RTL8111H Gigabit LAN for fast wired connectivity.

• Audio: Realtek ALC897 7.1 Channel HD Audio with Audio Boost for clear sound.

• EZ Debug LED: On board LEDs help diagnose system issues quickly.

• Micro-ATX Form Factor: Compact 202 × 236 mm board fits most mid tower and small cases.
