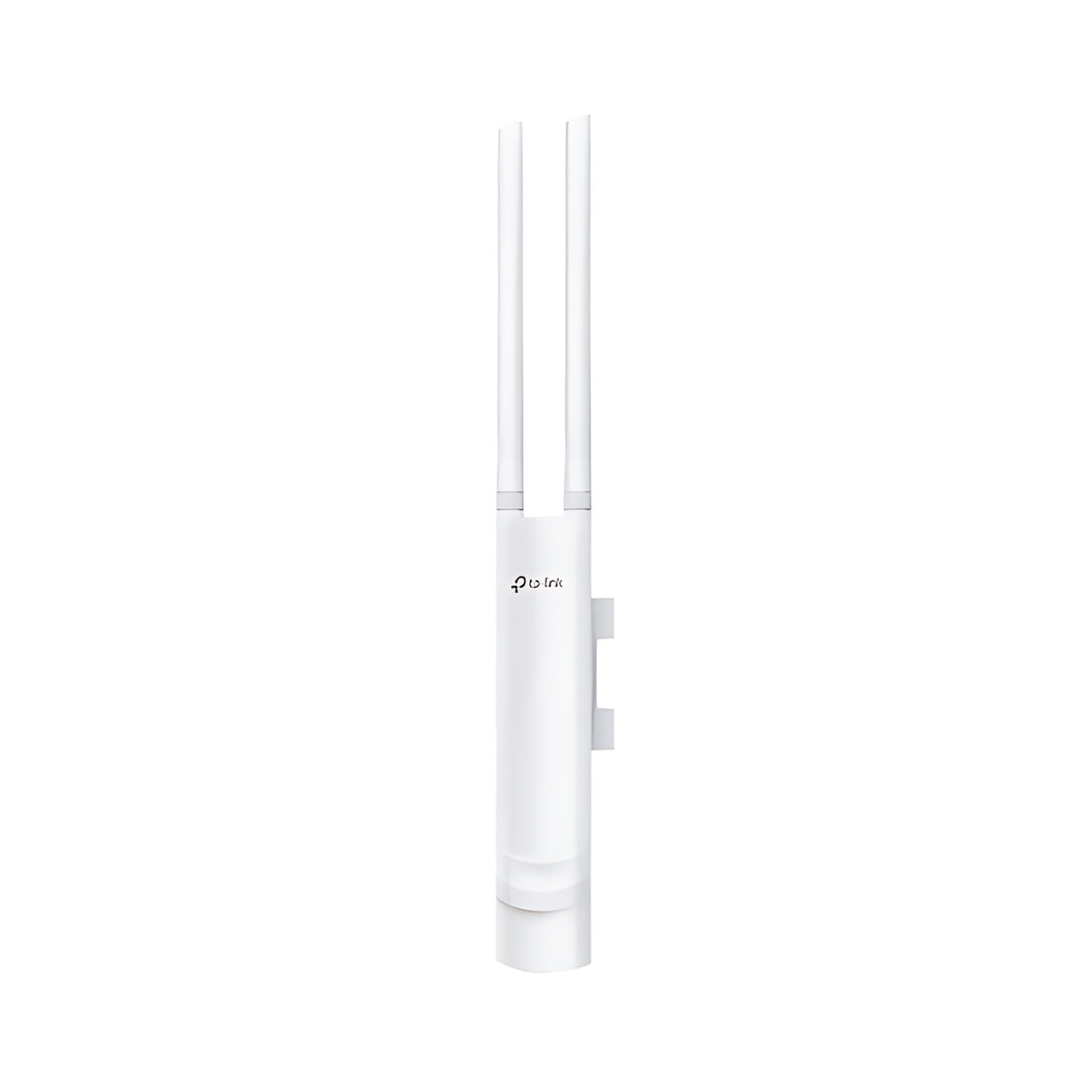

TP-Link Omada EAP225 AC1200 Wireless Indoor/Outdoor Access Point

The TP-Link Omada EAP225 AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point delivers fast, dual band Wi-Fi coverage with AC1200 speeds and advanced features suited for both indoor and outdoor deployments. Its weatherproof IP65 enclosure ensures durability in harsh environments, while 802.11ac Wave 2 MU-MIMO technology supports simultaneous connections for multiple devices. Integrated with the Omada SDN platform, it enables centralized cloud management, Omada Mesh technology, and seamless roaming for uninterrupted connectivity across large areas. The access point supports Power over Ethernet (PoE) for flexible installation and includes mounting kits for pole or wall setups.

Key Features

• Dual band Wi-Fi AC1200 with up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for reliable wireless performance.

• MU-MIMO technology for efficient multi device handling.

• Weatherproof IP65 rated enclosure built for both indoor and outdoor environments.

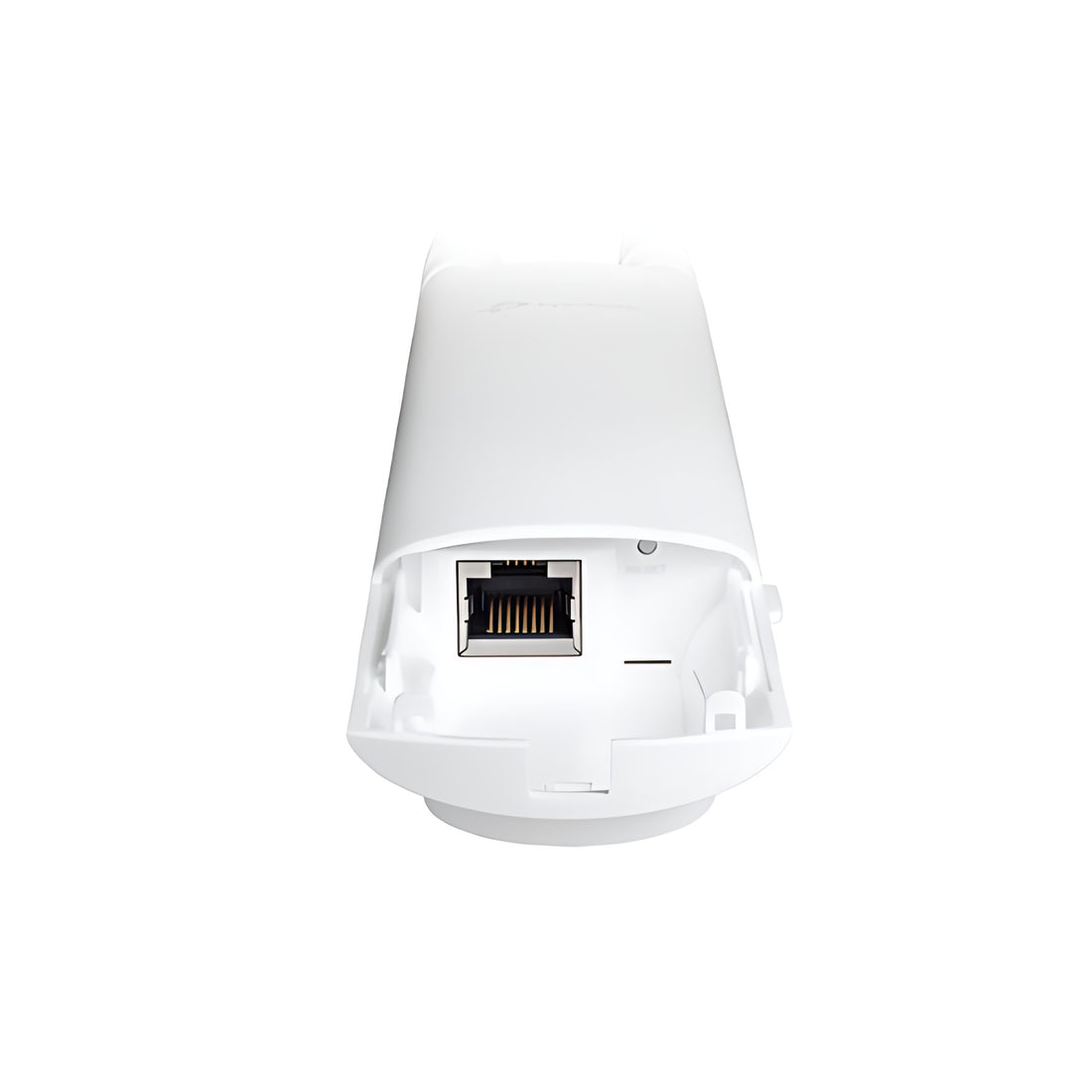

• Gigabit Ethernet (RJ-45) port with 802.3af/at PoE support and Passive PoE for simplified installation.

• Omada SDN integration for centralized cloud management, monitoring, and configuration via the Omada app or controller.

• Omada Mesh Technology to extend Wi-Fi coverage without wired backhaul.

• Seamless roaming maintains uninterrupted service for mobile devices across multiple APs.

• High gain dual band antennas for extended wireless coverage.

• Multiple SSIDs and advanced wireless management functions including band steering, airtime fairness, and load balancing.

Specifications

• Model: TP-Link Omada EAP225-Outdoor (AC1200)

• Standards: IEEE 802.11a/b/g/n/ac

• Frequency Bands: 2.4 GHz & 5 GHz

• Maximum Wireless Speed:

  • 2.4 GHz: up to 300 Mbps

  • 5 GHz: up to 867 Mbps

• Ethernet: 1 × Gigabit RJ-45 port (802.3af/at PoE & Passive PoE supported)

• Antennas: External dual band antennas (2 × 3 dBi for 2.4 GHz, 2 × 4 dBi for 5 GHz)

• Wireless Functions: MU-MIMO, beamforming, seamless roaming, mesh support, band steering, airtime fairness, load balancing, multiple SSIDs.

• Power Consumption: ~10.5 W

• Weatherproof Rating: IP65 for outdoor durability

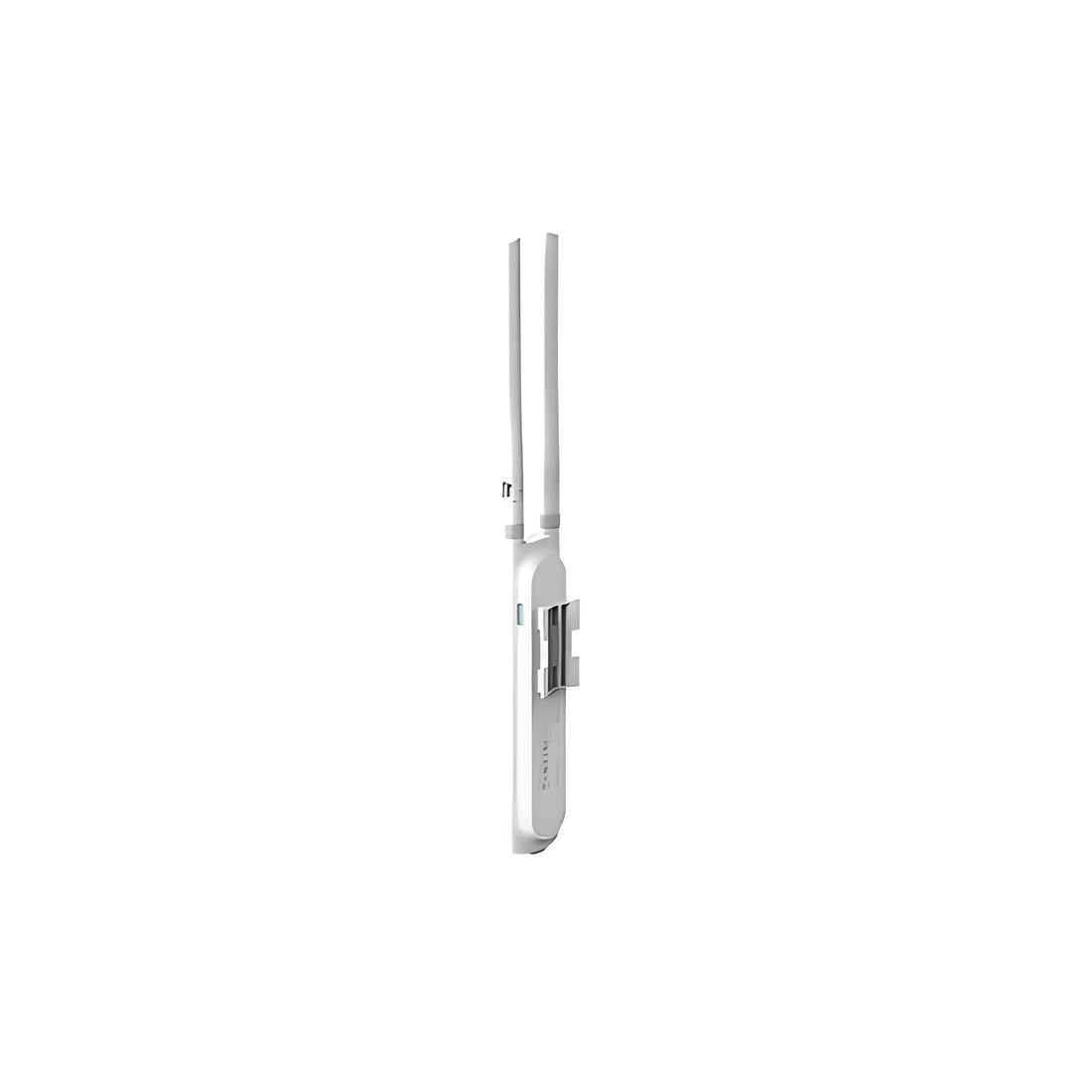

• Mounting: Pole and wall mounting kits included

• Operating Temperature: –30 °C to 70 °C

• Operating Humidity: 10 %-90 % non-condensing

• Package Contents: Access Point, Passive PoE Adapter, Power Cord, Mounting Kits, Waterproof Rubber Insert, Waterproof Antennas, Installation Guide.
