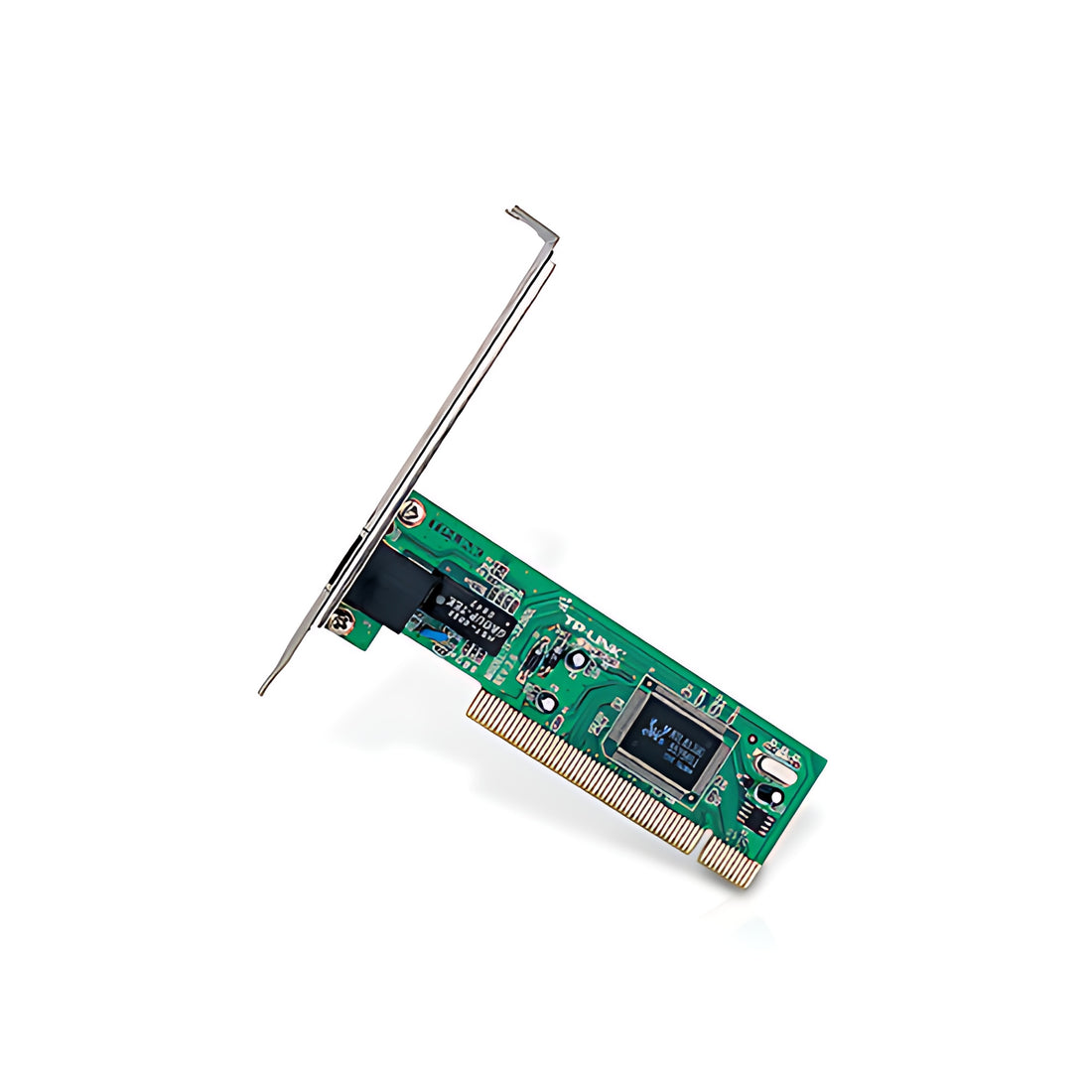

TP-Link TF-3239DL 10/100 Mbps PCI Network Adapter

The TP-Link TF-3239DL 10/100 Mbps PCI Network Adapter is a wired Ethernet interface card designed to add or upgrade a desktop PC’s network capability using a standard PCI slot. It supports Fast Ethernet (10/100Base-T) speeds with auto negotiation between 10 Mbps and 100 Mbps for Half-Duplex or Full-Duplex operation. This adapter complies with IEEE 802.3, 802.3u, and 802.3x standards, includes an LED Link/Act indicator for connection status, and comes with a resource CD and quick installation guide. It is compatible with a range of legacy and modern operating systems and provides a cost effective solution for wired network connectivity.

Key Features

• Fast Ethernet PCI adapter supporting 10 Mbps and 100 Mbps speeds with auto negotiation.

• 32 bit PCI interface for direct installation into desktop PC PCI slots.

• Single RJ45 10/100Mbps port for wired network connection.

• Supports Half-Duplex and Full-Duplex modes using Auto Negotiation technology.

• LED indicator (Link/Act) for connection and activity monitoring.

• IEEE 802.3x flow control for improved performance in Full Duplex mode.

• Broad OS support including Windows (98SE through Windows 7), Linux, Unix, and Novell NetWare.

• Compliant with standard network protocols including CSMA/CD and TCP/IP.

• Low-cost and easy installation makes it a practical upgrade for older PCs or wired networks.

Specifications

• Model: TF-3239DL

• Interface (Bus): 32 bit PCI (Revision 2.1/2.2)

• Network Port: 1 × RJ45 10/100Mbps

• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

• Data Transfer Rates:

  • 10/100 Mbps Half-Duplex

  • 20/200 Mbps Full-Duplex

• Flow Control: IEEE 802.3x (Full-Duplex)

• LED Indicators: Link/Act

• Operating Systems Supported: Windows 98SE/Me/NT/2000/XP/Vista/7, Linux, Novell NetWare

• Environment:

  • Operating Temperature: 0 °C – 40 °C

  • Storage Temperature: -40 °C – 70 °C

  • Operating Humidity: 10 % – 90 % non-condensing

  • Storage Humidity: 5 % – 90 % non-condensing

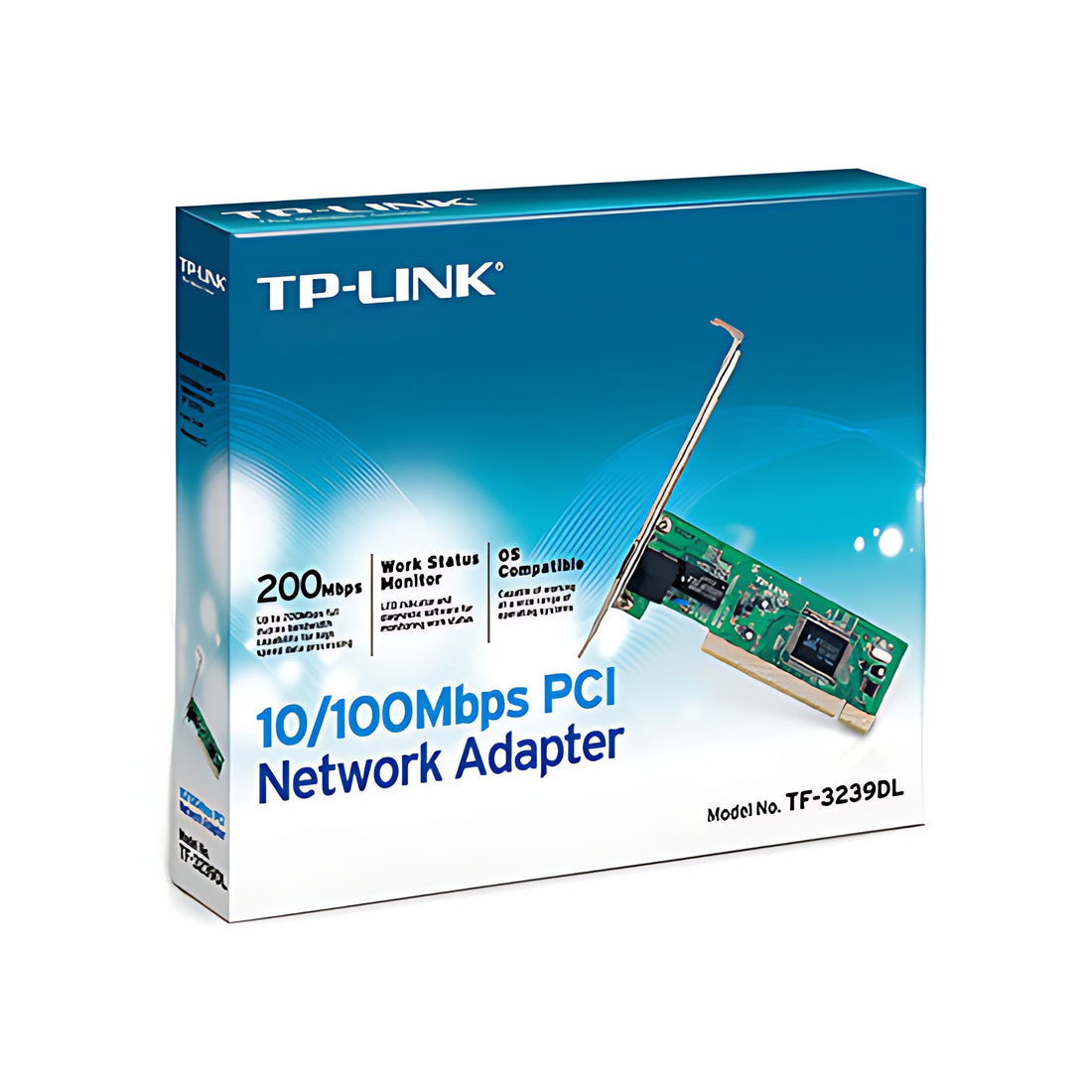

• Package Contents: TF-3239DL adapter, Resource CD, Quick installation guide

• Certifications: CE, FCC, RoHS.
