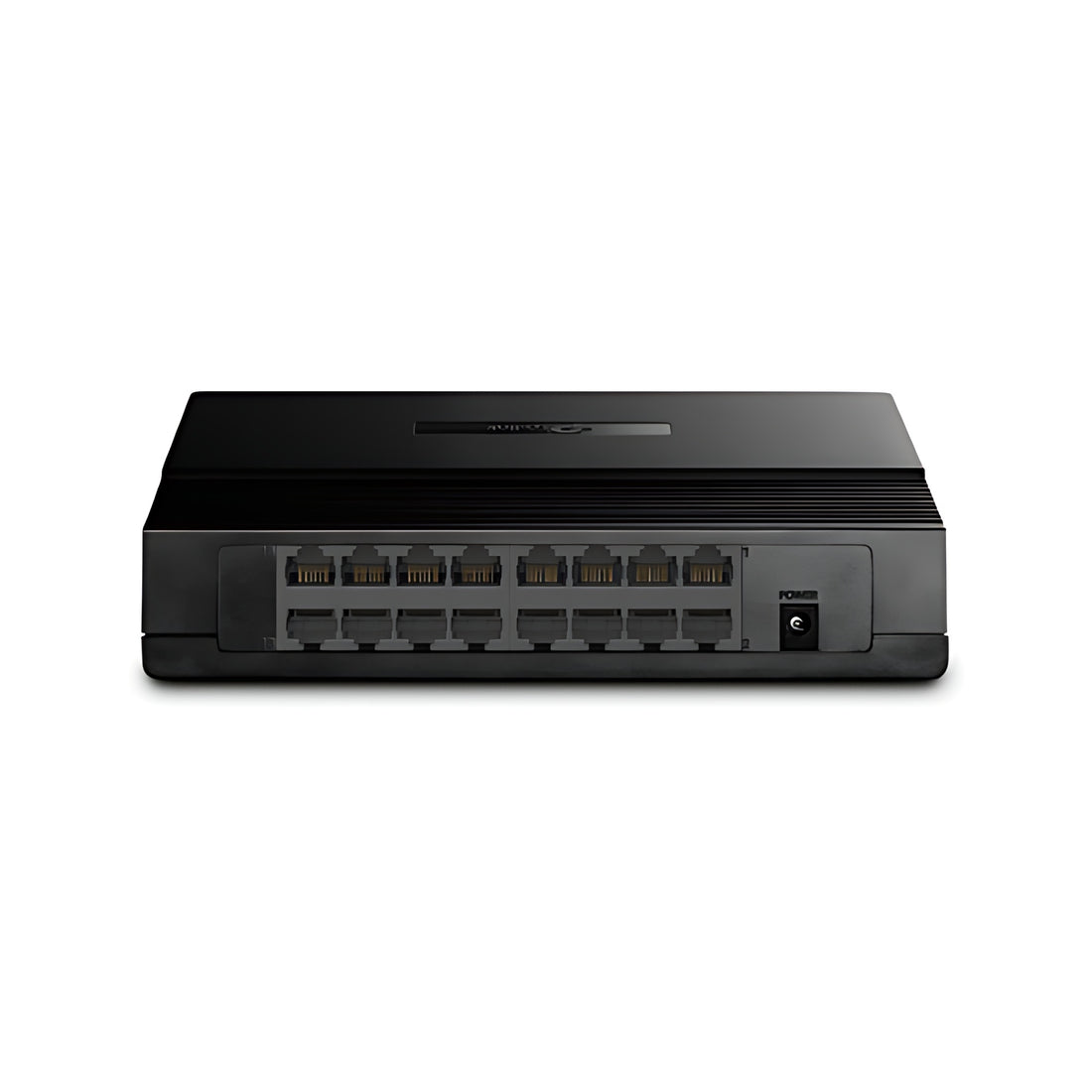

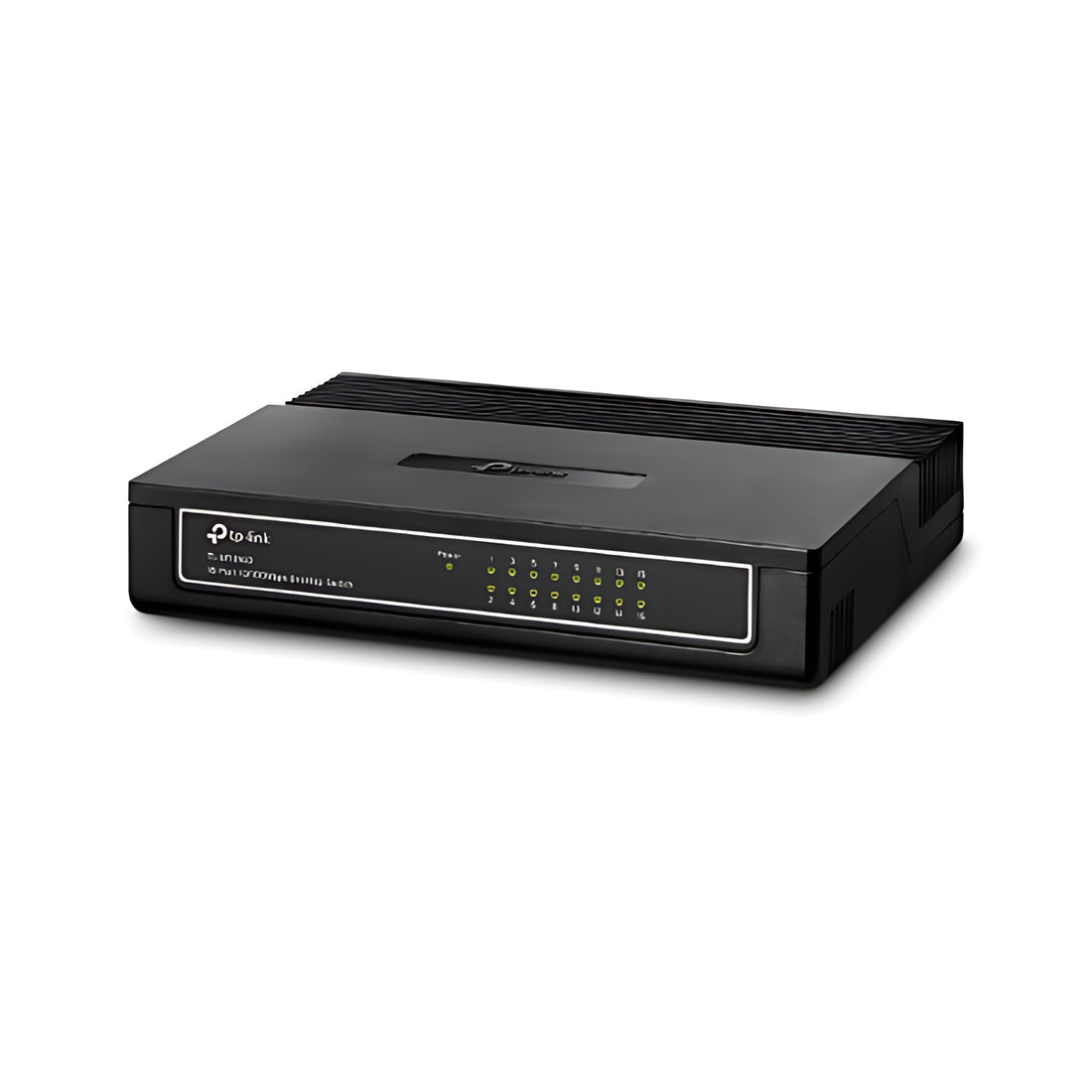

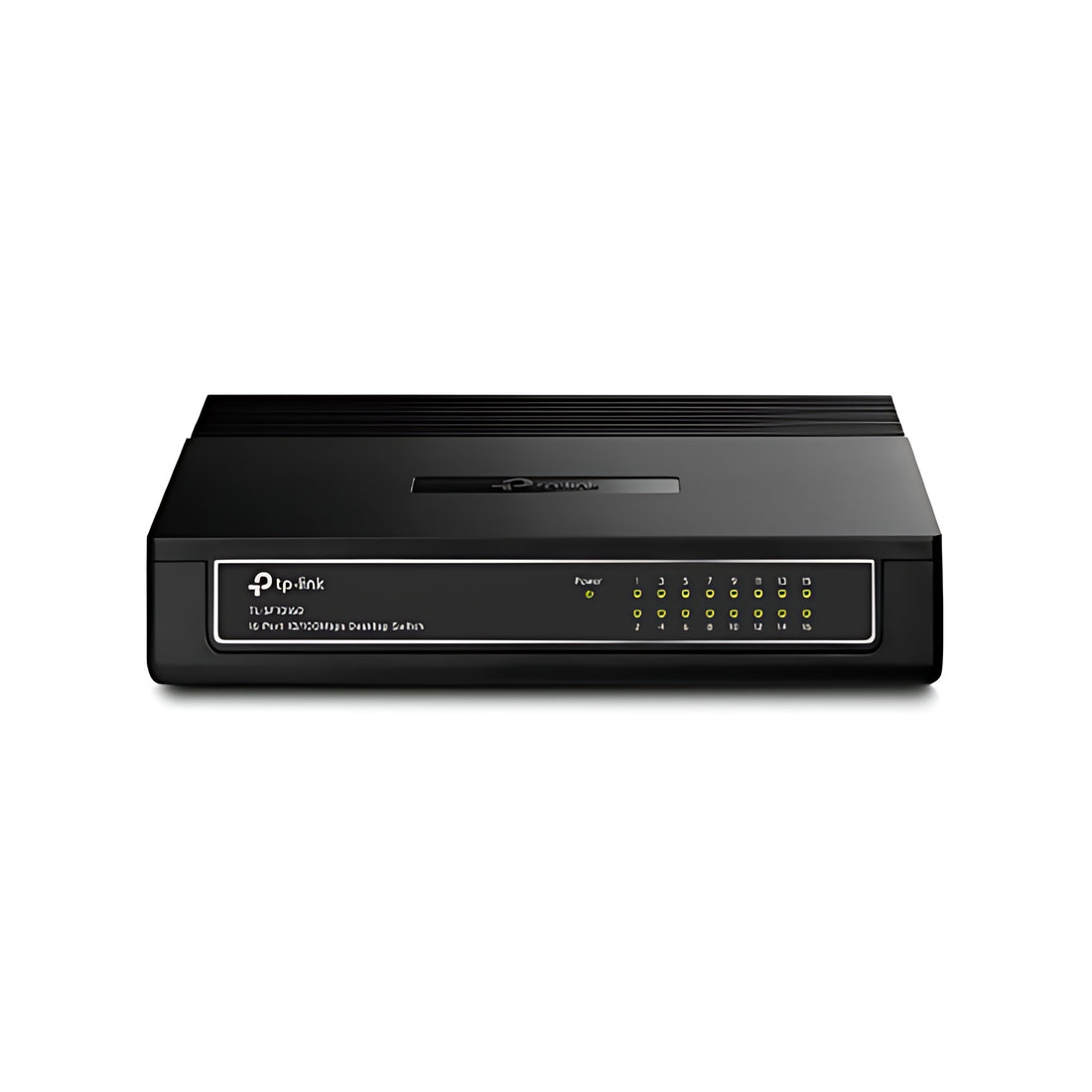

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch

The TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch is an unmanaged Fast Ethernet network switch designed for SOHO (Small Office/Home Office) and workgroup environments. With 16 Auto Negotiation 10/100 Mbps RJ45 ports, it provides fast, reliable connectivity for wired devices. Built in Auto MDI/MDIX eliminates the need for crossover cables, while TP-Link Green Technology reduces power consumption automatically based on link status and cable length. The fanless design ensures quiet operation, and the plug and play setup requires no configuration, making it ideal for expanding wired networks quickly and efficiently.

Key Features

• 16 × 10/100 Mbps RJ45 ports with Auto Negotiation for optimized network speed.

• Auto MDI/MDIX on all ports eliminates the need for crossover cables.

• Green Ethernet technology intelligently adjusts power usage to save energy.

• Plug and play design with no configuration required ideal for simple network expansion.

• IEEE 802.3x flow control for reliable data transfer in full duplex mode.

• Fanless, silent operation perfect for desktop environments.

• Store and forward switching method for effective traffic handling.

• LED indicators for power and link/activity per port.

• Desktop or wall mountable design for flexible installation.

Specifications

• Model: TL-SF1016D

• Ports: 16 × 10/100 Mbps Auto Negotiation RJ45 (Auto MDI/MDIX)

• Switching Method: Store and Forward

• Flow Control: IEEE 802.3x (Full-Duplex), Backpressure (Half-Duplex)

• MAC Address Table: 2K entries

• Green Technology: Yes (energy saving)

• Power Supply: External adapter (100–240 VAC to 9 VDC, 0.6 A)

• Max Power Consumption: ~3.1–3.23 W (varies by voltage)

• Dimensions: ~200 × 142 × 40 mm (7.9 × 5.6 × 1.6 in)

• Certifications: FCC, CE, RoHS

• Operating Temperature: 0 °C – 40 °C (32 °F – 104 °F)

• Operating Humidity: 10 % – 90 % non-condensing

• Package Contents: TL-SF1016D Switch, Power Adapter, User Guide.
