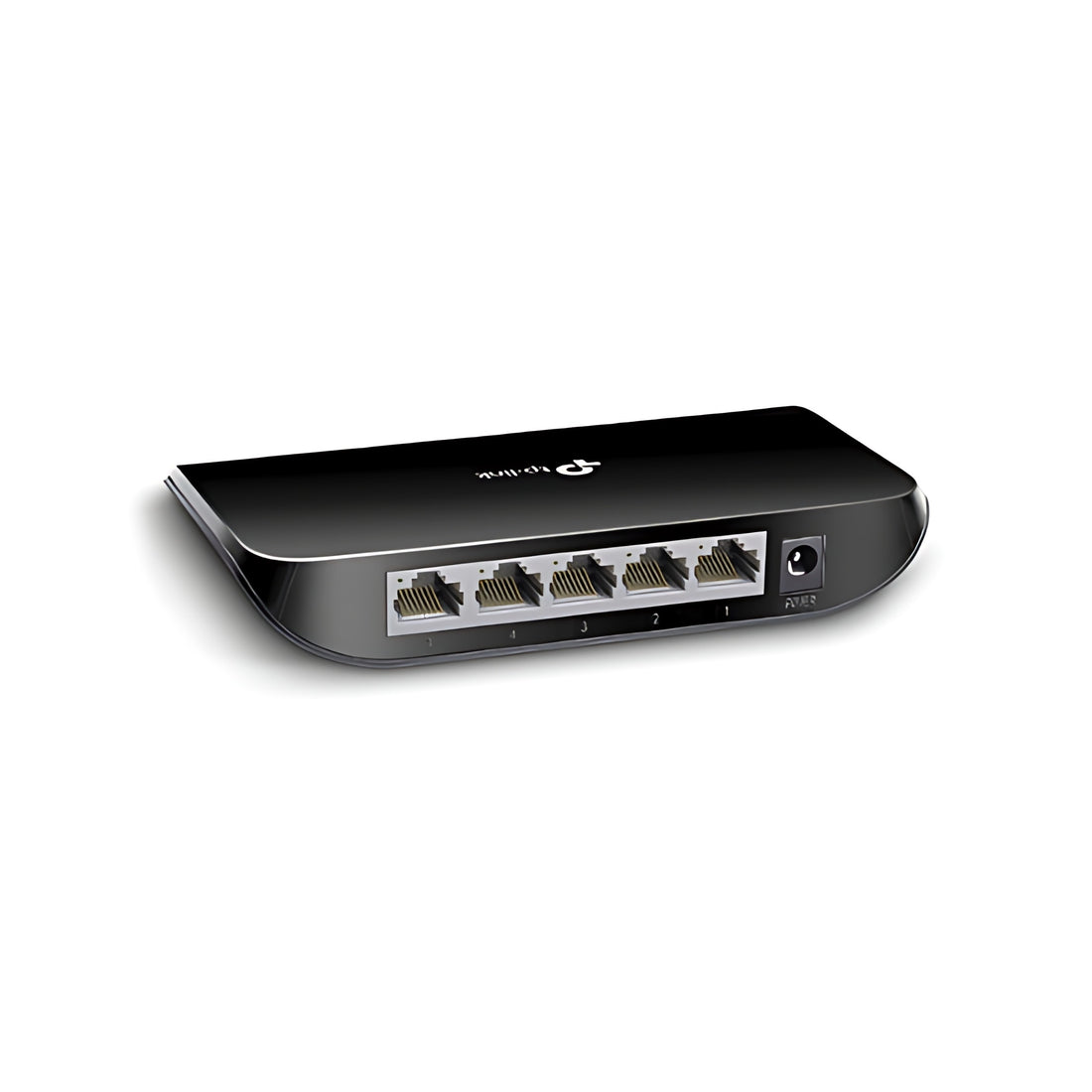

TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch

The TP-Link TL-SG1005D is a compact, reliable, and easy to use 5-port Gigabit Ethernet desktop switch designed to expand your wired network at home or in small offices. It delivers true 1,000 Mbps speeds on all ports, supports auto negotiation and auto MDI/MDIX, and requires no configuration simply plug in and connect. With a sturdy metal case and energy efficient design that reduces power consumption, the TL-SG1005D is ideal for connecting multiple wired devices such as computers, gaming consoles, printers, and network storage devices while maintaining fast and stable performance.

Key Features

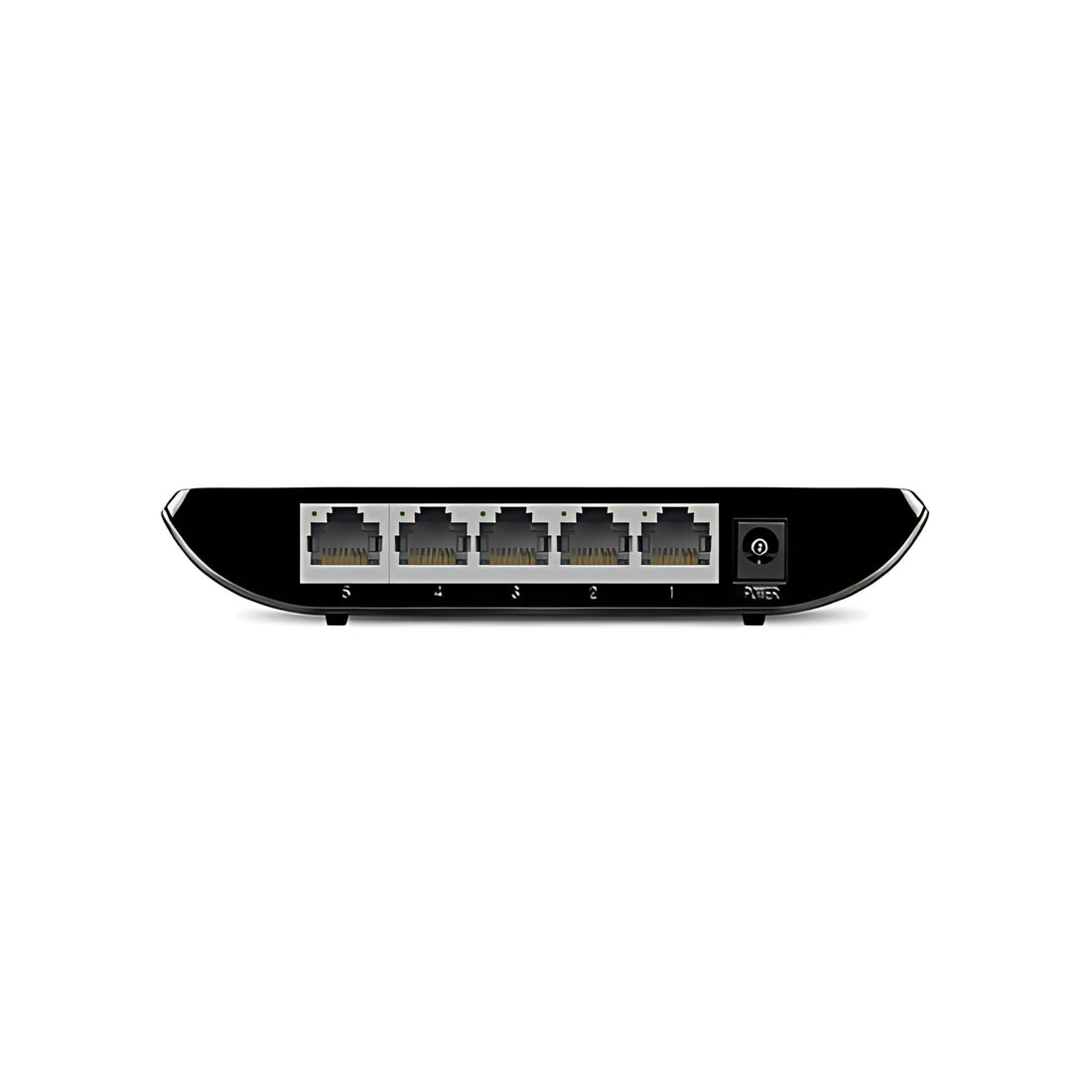

• 5 × Gigabit Ethernet Ports: Provides five 10/100/1000 Mbps RJ-45 ports for high speed wired connections.

• Plug and Play: Ready to use with no configuration or setup.

• Auto Negotiation: Automatically adjusts to the highest possible transmission speed between device and switch.

• Auto MDI/MDIX: Eliminates the need for crossover cables.

• Energy Efficient: Saves power by adjusting power usage based on link status and cable length.

• Unmanaged Switch: Simple and reliable for basic network expansion.

• Fanless Design: Silent operation suitable for desktops and workspaces.

• Durable Metal Case: Sturdy enclosure for long term use.

Specifications

Ports & Performance

• Switch Model: TP-Link TL-SG1005D.

• Total Ports: 5 × 10/100/1000 Mbps RJ-45 Gigabit Ethernet ports.

• Switching Capacity: 10 Gbps.

• Forwarding Rate: 7.4 Mpps (million packets per second).

• MAC Address Table: 2K entries.

Network Features

• Auto-Negotiation: Yes

• Auto-MDI/MDIX: Yes

• Flow Control: IEEE 802.3x for Full-Duplex, Backpressure for Half-Duplex.

LED Indicators

• Power, Link/Activity per port.

Physical & Environmental

• Housing: Metal enclosure.

• Dimensions: 98 × 70 × 25 mm (approximate).

• Weight (bare switch): ~0.23 kg.

• Operating Temperature: 0 °C to 40 °C.

• Operating Humidity: 10%-90% non condensing.

Power

• Power Adapter: External (varies by region).

• Input: 100–240 V AC, 50/60 Hz (adapter output may be 9 V DC, 0.6 A or similar).
